Nanopositioning Stages
Queensgate nanopositioning stages, offer custom solutions for our customers and their challenges.
Closed loop piezo actuated stages. Standard stage materials are as listed in datasheets, alternative materials are available, including Super Invar, stainless steel, titanium and aluminum. Options include vacuum, radiation, high temperature compatibility. Custom designs also available on request.
Available in linear or tilting/rotational formats with both single and multi-axis configurations, Queensgate’s nanopositioning stages utilize high performance piezo actuation combined with Queensgates renowned capacitance position feedback to provide complete high performance closed loop systems. When specified with closed loop digital controller, complete plug-and-play interchangeability can be achieved.
Queensgate Nanopositioning Stages

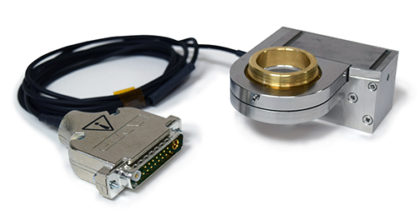

NanoScan SP Series Piezo Sample Scanners

The NanoScan series delivers the best positioning performance and fastest recovery available on the market.
FIND OUT MORE 了解更多QGNPS-X-15A and QGNPS-X-15B Low Profile Fast 15 Micron Stages

Designed for high speed, ultra precision MR head and disk drive testing.
FIND OUT MORE 了解更多QGNPS-XY-100 Series Two Axis 100µm x 100µm Invar & Aluminum Stages

Piezo scanned flexure guided stages with integrated capacitance position sensors.
FIND OUT MORE 了解更多QGNPS-Z-500B-UHV Long Range 500 Micron Stage

The QG NPS-Z-500B-UHV delivers over 100um full range at 80K at UHV.
FIND OUT MORE 了解更多
