NanoScan SP200/SP400/SP600/SP800 Piezo Sample Positioner / Scanner

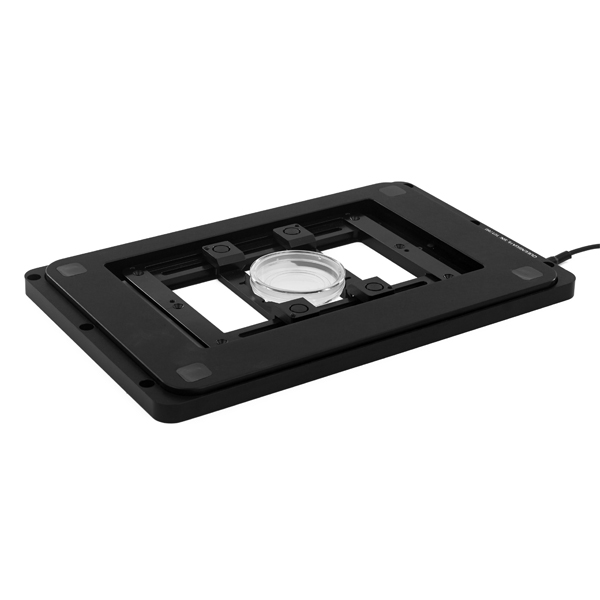

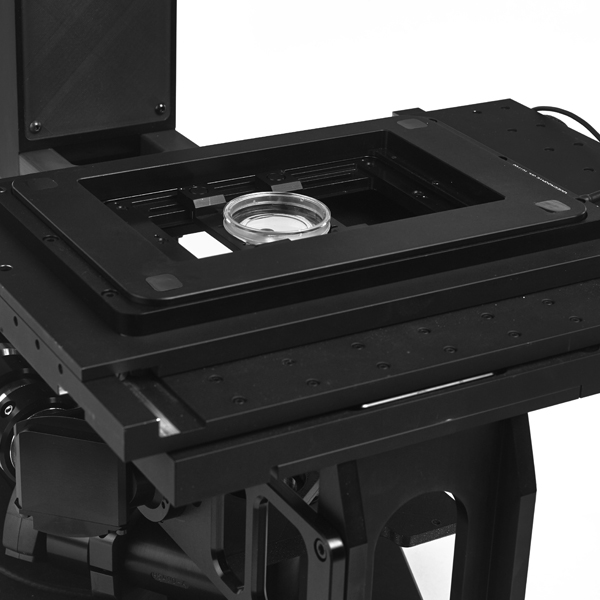

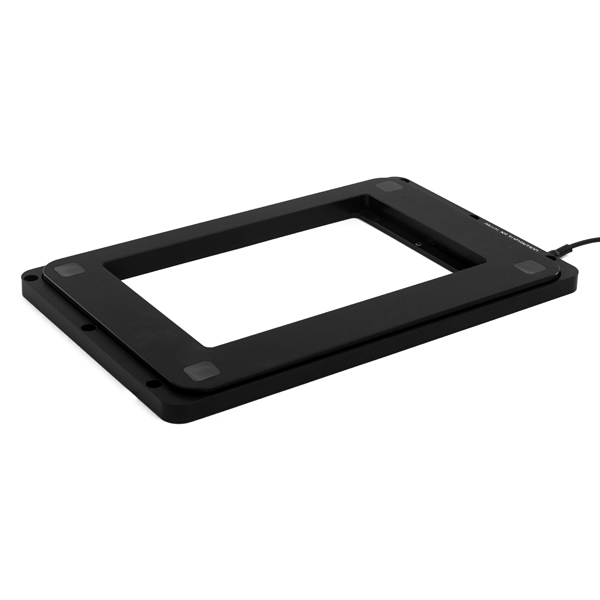

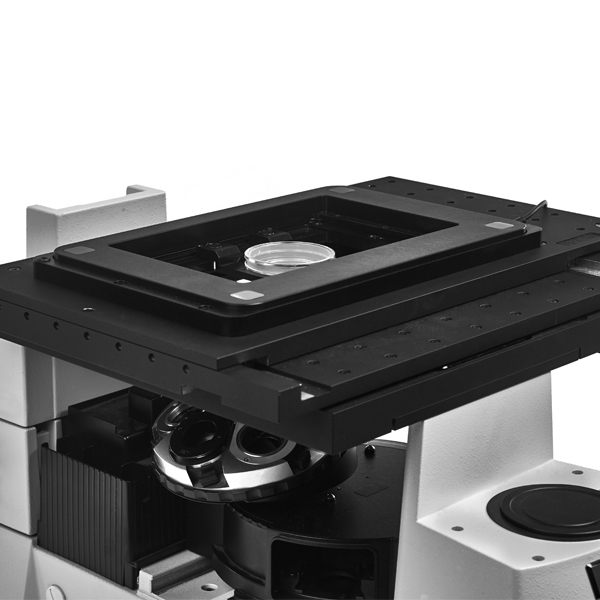

Delivering the best positioning performance and fastest recovery between Z stacks, the NanoScan-SP range of Piezo driven stages are compatible with the Prior motorized stage as well as many common microscopes when using appropriate adapter plates. The super slim closed-loop design has a height of 14mm (or less) for all versions, providing better access for illumination of the sample area. Accessory insert plates are available for a wide variety of samples, including well plates, microtitre plates, slides and petri dishes.

Suggested controller:

  • NPC-D-6110

Download datasheet

NanoScan SP200/SP400/SP600/SP800 Piezo Sample Positioner / Scanner

Delivering the best positioning performance and fastest recovery between Z stacks, the NanoScan-SP range of Piezo driven stages are compatible with the Prior motorized stage as well as many common microscopes when using appropriate adapter plates. The super slim closed-loop design has a height of 14mm (or less) for all versions, providing better access for illumination of the sample area. Accessory insert plates are available for a wide variety of samples, including well plates, microtitre plates, slides and petri dishes.

Suggested controller:

  • NPC-D-6110

Download datasheet

  • Capacitive positioning sensors giving market leading resolution.
  • Step settle times of <10ms
  • Loads of up to 500g (higher loads on request)
  • Connectors with built in stage calibration provide plug and play electronics which can be interchanged, minimizing system down times.
  • User configurable settings optimized for different sample masses sizes and performance needs. The user simply selects the best setting for their application.
  • Tested to function for greater than 10 million full range cycles
  • Optical sectioning producing 3D images
  • Live cell imaging
  • Autofocus systems for time lapse imaging
  • High content screening
  • Surface analysis
  • Wafer inspection
  • OEM custom solutions
SP200 SP400 SP600 SP800
Axis Z Z Z Z
Range 200 um 400 um 600 um 800 um
Position noise 0.7 nm 0.7 nm 0.7 nm 1.23 nm
Repeatability 3 nm 3 nm 3 nm 3 nm
Linearity 0.20% 0.20% 0.20% 0.20%
Step Settle 8 ms 8 ms 9 ms 10 ms
Material Aluminum/ Stainless Steel Aluminum/ Stainless Steel Aluminum/ Stainless Steel Aluminum/ Stainless Steel
Size (L x W x H) 260 mm x 164 mm x 13.7 mm 260 mm x 164 mm x 13.7 mm 260 mm x 164 mm x 13.7 mm 260 mm x 164 mm x 14 mm

NanoScan_SP_Series-EN-UK-Datasheet

DOWNLOAD

DISH HOLDER INFO

DOWNLOAD
