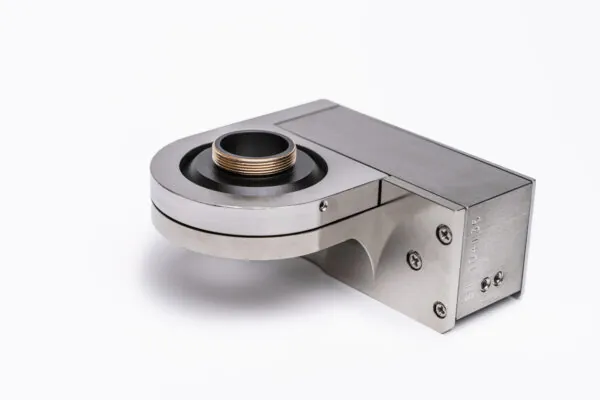

The OP800 Piezo Objective Scanner provides the fastest step and settle time of any objective positioner available. Incorporating capacitive feedback sensors, it also has market-leading positioning accuracy and resolution. Compatible with most microscopes and objective lenses the system has user-configurable settings optimized for different objective sizes, weights, and performance needs. The user simply selects the best setting for their application.
“We have recently added the Prior NanoScan OP800 to our imaging setup. We have had success using this device. It was easy to install onto our microscope nosepiece using brass adapter rings and we have easy control using the included software. For our imaging, our objective is to capture neuronal fluorescence that is distributed over a curved surface. On its own, our objective only allows us to visualize a small portion of this surface corresponding to a narrow focal plane. The NanoScan OP800 has enabled us to double the effective measurement field. We have programmed the device to cover a distance of 300 μm in 100 μm steps during our acquisition window of 200 ms. The device can step through these planes almost instantaneously and we observe no obvious movement artifact. We find a decrease in resolution that is expected from acquiring in multiple planes. Post-experiment image processing, reveals that this diminished resolution does not interfere with our downstream analysis. Importantly, we only find that we gain additional fluorescent signal in the previously out-of-focus planes without any information loss from the original, narrower focal field. We have attached processed images from our recording sessions of equivalent neuronal fluorescence acquired with and without the NanoScan OP800 to demonstrate the difference in our data.”
Joshua J. Emrick, DDS, PhD at The University of Michigan School of Dentistry

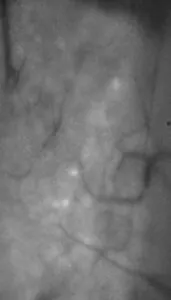

Image acquired without NanoScan OP800

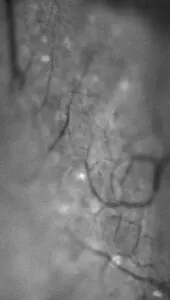

Image acquired with NanoScan OP800
Images are of a GCaMP6f fluorescence in the trigeminal ganglion Courtesy of Akash R. Gandhi, Elizabeth A. Ronan, PhD, and Joshua J. Emrick, DDS, PhD, Department of Biologic and Materials Sciences & Prosthodontics, University of Michigan School of Dentistry, Ann Arbor, Michigan.
NanoScan OP800 Piezo Objective Scanner

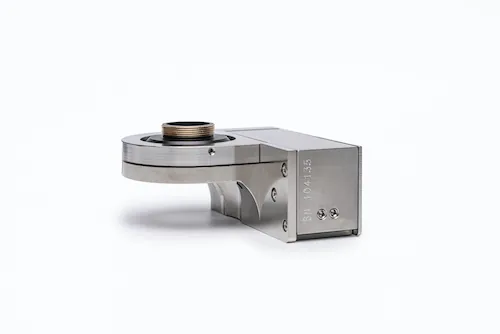

The OP800 Piezo Objective Scanner provides the fastest step and settle time of any objective positioner available. Incorporating capacitive feedback sensors, it also has market-leading positioning accuracy and resolution. Compatible with most microscopes and objective lenses the system has user-configurable settings optimized for different objective sizes, weights, and performance needs. The user simply selects the best setting for their application.
“We have recently added the Prior NanoScan OP800 to our imaging setup. We have had success using this device. It was easy to install onto our microscope nosepiece using brass adapter rings and we have easy control using the included software. For our imaging, our objective is to capture neuronal fluorescence that is distributed over a curved surface. On its own, our objective only allows us to visualize a small portion of this surface corresponding to a narrow focal plane. The NanoScan OP800 has enabled us to double the effective measurement field. We have programmed the device to cover a distance of 300 μm in 100 μm steps during our acquisition window of 200 ms. The device can step through these planes almost instantaneously and we observe no obvious movement artifact. We find a decrease in resolution that is expected from acquiring in multiple planes. Post-experiment image processing, reveals that this diminished resolution does not interfere with our downstream analysis. Importantly, we only find that we gain additional fluorescent signal in the previously out-of-focus planes without any information loss from the original, narrower focal field. We have attached processed images from our recording sessions of equivalent neuronal fluorescence acquired with and without the NanoScan OP800 to demonstrate the difference in our data.”
Joshua J. Emrick, DDS, PhD at The University of Michigan School of Dentistry
Image acquired without NanoScan OP800
Image acquired with NanoScan OP800
Images are of a GCaMP6f fluorescence in the trigeminal ganglion Courtesy of Akash R. Gandhi, Elizabeth A. Ronan, PhD, and Joshua J. Emrick, DDS, PhD, Department of Biologic and Materials Sciences & Prosthodontics, University of Michigan School of Dentistry, Ann Arbor, Michigan.
800μm closed loop travel range (450μm open loop range)
Capacitive positioning sensors give sub nanometer positioning resolution and repeatability
Made from stainless steel providing greater mechanical stiffness (faster) and temperature stability (lowest drift).
The stage is a flexure guided system. The friction free flexures are designed to provide high stiffness and to minimize off axis motions giving high repeatability and faster cycle times.
Suitable for upright and inverted applications.
Connectors with built in stage calibration provide plug and play electronics which can be interchanged, minimizing system down times.
Rapid settling times even with large objective loads. Tested to function for greater than 10 million full range cycles.
Model
OP800
Axis
Z
Range
800 μm
Position noise
2.5 nm under 250g load
Repeatability
6 nm
Linearity
0.01%
Step Settle
17ms
Material
Aluminum/ Stainless Steel
Thread
RMS, M25, W26, M27, M32
NanoScan_OP800_EN_Datasheet
DOWNLOAD
OP800 INSTALLATION DRAWING
DOWNLOAD
