Introducing a new high-load Piezo Wafer Z stage

Wafer Z Stage

Queensgate, a brand of Prior Scientific, introduces a new high-load Piezo Wafer Z Stage

Queensgate’s Wafer Z Stage is a new addition to its product line, achieving fast response and settle times using Queensgate’s leading digital closed-loop controllers.

Queensgate, a brand of Prior Scientific, has announced the launch of the WP-Z-120A Wafer Stage. Millisecond response times and high bandwidth make the WP-Z-120A wafer positioning system ideal for applications where high throughput is essential. The Wafer Stage can be used in wafer inspection with an optical microscope such as the Prior Scientific OpenStand microscope or an OEM version using various optical or other inspection techniques.

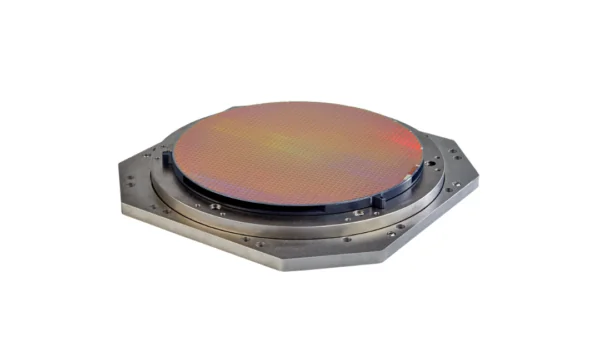

The stage is designed to hold 300 mm (12″) wafers and delivers an exceptional performance with a load capacity of up to 8 kg, suitable for even very heavy wafer chucks. The stage incorporates capacitive positioning sensors to provide nanometer displacement measurement and precision closed-loop feedback. Flexure guidance offers friction-free, reliable motion to more than 120 µm in closed-loop mode and achieves fast response and settle times with Queensgate’s digital closed-loop controllers.

“We are pleased to introduce WP-Z-120A Wafer Scanner to the market. We wanted to design a wafer scanner that can carry a high load but achieves market-leading fast response and settle times,” said Alison Raby, Business Development Manager for Queensgate, “The Wafer Scanner was designed with OEM customers in mind and can be adapted to new custom versions easily.”

WP-Z-120A Wafer Stage can be customized for different environments and specifications. It is vacuum (HV) compatible and ideal for a chamber in an electron microscope. Ultra-high vacuum (UHV) and UHV-RAD radiation-hard versions are also available. A higher load custom version can be used for up to 14 kg loads and a tip-tilt version for platform leveling and scanning is available. An extended range of 160 μm and a smaller size for 200 mm wafers are possible upon request.
