Nanopositioning Stages

Queensgate nanopositioning stages, offer custom solutions for our customers and their challenges.

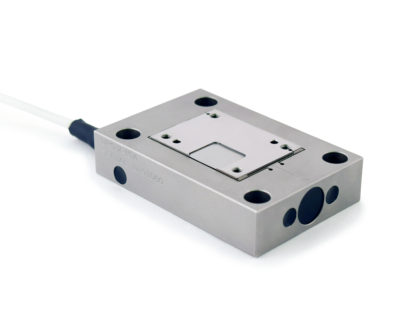

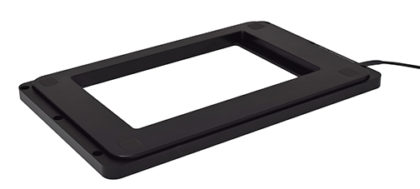

Closed loop piezo actuated stages. Standard stage materials are as listed in datasheets, alternative materials are available, including Super Invar, stainless steel, titanium and aluminum. Options include vacuum, radiation, high temperature compatibility. Custom designs also available on request.

Available in linear or tilting/rotational formats with both single and multi-axis configurations, Queensgate’s nanopositioning stages utilize high performance piezo actuation combined with Queensgates renowned capacitance position feedback to provide complete high performance closed loop systems. When specified with closed loop digital controller, complete plug-and-play interchangeability can be achieved.
